Wear-Resistant Plates EVEREST®
Superior protection for mining equipment and structures
View ApplicationsWear-Resistant Plates

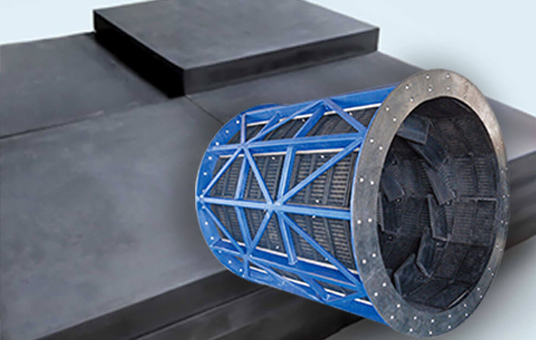

EVEREST® Wear-Resistant Plates are protective solutions manufactured from high-resistance polyurethane and rubber, specifically designed to protect equipment and structures from abrasive wear and impact in mining operations. Available in different thicknesses, hardness levels, and sizes to suit any application.
Our plates offer a superior alternative to traditional metal linings, providing greater wear resistance, noise reduction, lighter weight, and easy installation, resulting in lower total cost of ownership.
Technical Characteristics
EVEREST® Wear-Resistant Plates offer superior advantages:
- High abrasion resistance in severe conditions
- Excellent impact absorption capability
- Significant noise reduction during operation
- Light weight for easy handling and installation
- Chemical resistance and environmental conditions
- Easy cutting and shaping on site
- Available in multiple thicknesses (10mm to 100mm)
Ideal for lining chutes, hoppers, conveyor belts, processing equipment, and any area subject to abrasive wear.
Protection Applications
Solutions for wear protection throughout the plant
Chutes and Hoppers
Complete lining for transfer chutes and storage hoppers.
- Wear protection
- Noise reduction
- Easy installation
Conveyor Belts
Protection for conveyor heads, transfer points, and belt structures.
- Impact protection
- Wear reduction
- Long duration
Truck Beds
Lining for mining truck beds and transport equipment.
- Impact protection
- Easy unloading
- Weight reduction
Structures and Equipment
Protection of metal structures and equipment against wear and impact.
- Structural protection
- Easy mounting
- Low maintenance
Modular Panels
Modular panel systems for quick protection and easy replacement.
- Quick installation
- Easy replacement
- Versatility
Special Protection
Customized solutions for specific and critical applications.
- Custom design
- High resistance
- Optimal performance
Technical Specifications
Properties and technical characteristics
| Property | Polyurethane Plates | Rubber Plates |
|---|---|---|
| Hardness Shore A | 80 - 95 | 50 - 70 |
| Available Thicknesses | 10mm - 50mm | 10mm - 100mm |
| Abrasion Resistance | Excellent | Very Good |
| Impact Resistance | Good | Excellent |
| Specific Weight | 1.2 g/cm³ | 1.1 g/cm³ |
| Service Temperature | -30°C to +80°C | -40°C to +70°C |
Plate Benefits
Extended Service Life
Up to 5 times longer life than traditional metal linings.
Noise Reduction
Up to 15 dB reduction in operational noise levels.
Lower Total Cost
Reduction of maintenance and replacement costs up to 40%.
Easy Installation
Quick installation with simple and effective fastening systems.
Fastening Systems
Specialized systems for secure and durable installation
Bolt System
Special bolts with pressure washers for secure fastening.
Adhesive System
Special high-resistance adhesives for irregular surfaces.
Modular System
Modular panel system with quick and replaceable fastenings.
Need Wear Protection?
Our Wear-Resistant Plates offer superior protection. Request samples and specialized technical advisory.
