Orange Beat Mining Rubber EVEREST®
Superior impact and abrasion resistance in extreme conditions
View ApplicationsOrange Beat Mining Rubber

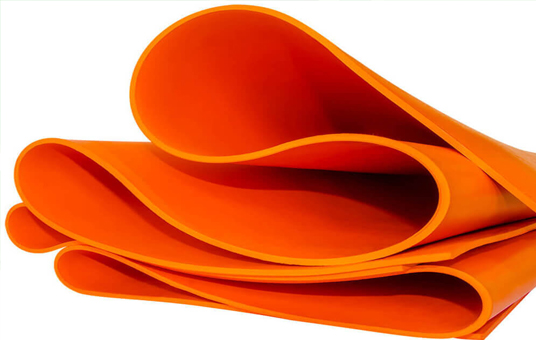

Orange Beat Mining Rubber EVEREST® is a special compound designed for applications where severe impact and moderate abrasion predominate. Its unique formulation combines high impact resistance with excellent elasticity and recovery.
Specifically developed to withstand the rigors of mining and heavy construction, Orange Beat is ideal for applications requiring energy absorption and exceptional durability.
Technical Characteristics
Orange Beat Mining Rubber EVEREST® offers outstanding technical advantages:
- High impact resistance to severe shocks
- Excellent energy absorption capability
- Good moderate abrasion performance
- Fatigue resistance from repeated cycles
- Low compression set for extended life
- Maintained flexibility under intensive use
- Distinctive orange color for easy identification
Ideal for grizzly screens, crusher hopper linings, impactors, and high-impact applications.
Mining Applications
Targeted solutions for high-impact points
Grizzly Screens
Screens for primary material classification, resistant to impact from large rocks.
- Impact resistance
- Reduced noise
- Less metallic wear
Hopper Linings
Linings for feed hoppers and primary crushing systems.
- Impact absorption
- Structural protection
- Noise reduction
Impact Hammers
Components for crushing hammers and impact equipment.
- High resistance
- Long service life
- Vibration reduction
Truck Bed Protection
Protections for truck beds and loading equipment.
- Shock absorption
- Easy installation
- Damage reduction
Shock Absorbers
Dampers for transport and handling systems.
- Energy absorption
- Reduced maintenance
- Long duration
Side Protections
Protections for equipment against lateral impacts.
- Structural protection
- Easy replacement
- Enhanced safety
Technical Specifications
Physical and mechanical properties of Orange Beat
| Property | Value | Test Method |
|---|---|---|
| Hardness Shore A | 70 ± 5 | ASTM D2240 |
| Tensile Strength | 20 MPa min | ASTM D412 |
| Elongation at Break | 450% min | ASTM D412 |
| Tear Resistance | 60 kN/m min | ASTM D624 |
| Impact Resistance | Excellent | ASTM D5420 |
| Compression Set | 20% max | ASTM D395 |
Benefits for Mining
Impact Protection
Absorbs and distributes energy from severe impacts, protecting critical equipment.
Noise Reduction
Significantly decreases noise levels in crushing operations.
Reduced Maintenance
Decreases frequency of maintenance and replacement of metallic components.
Vibration Absorption
Reduces vibrations transmitted to structures and equipment.
High-Impact Applications?
Orange Beat Mining Rubber is the ideal solution for severe impact points. Request specialized technical advisory.
